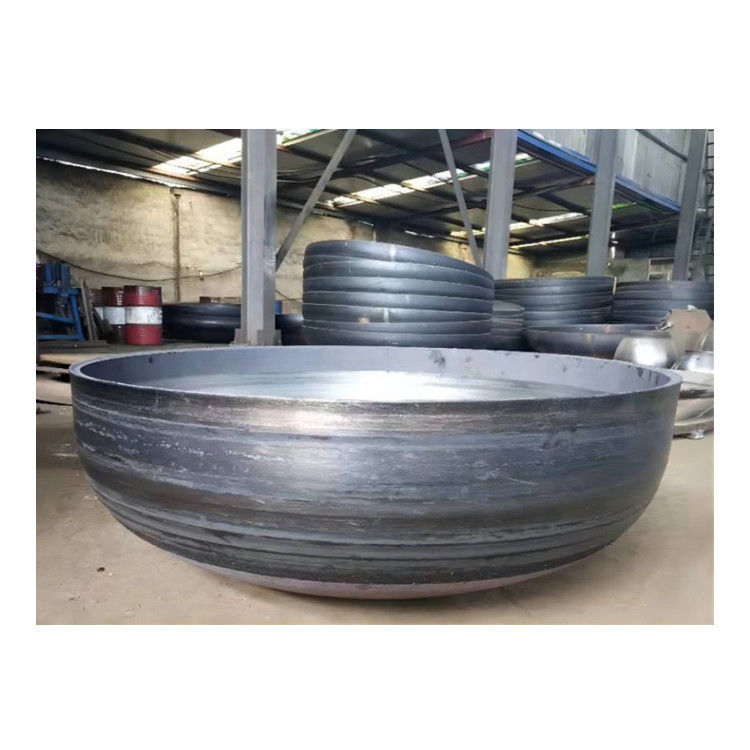

High Precision Stainless Steel Tank Dished Head in ASME Standard Hemispherical Design

Large Image : High Precision Stainless Steel Tank Dished Head in ASME Standard Hemispherical Design

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	mingyi
Model Number:	my030

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$150.00/sets 1-19 sets
Packaging Details:	wooden package,
Supply Ability:	100 Piece/Pieces per Day

Contact Now

High Precision Stainless Steel Tank Dished Head in ASME Standard Hemispherical Design

Description

Warranty:	1 Years	Customized Support:	OEM, ODM, OBM
Technics:	Pressing	Connection:	Welding
Shape:	Equal	Head Code:	Circle
Product Name:	Hemisphere/ Torispherical / Elliptical Tank Head	Material:	Stainless Steel
Keyword 3:	Stainless Steel Pipe Fitting Tank Dished Head	Application:	Industry
Standard:	ASME	Keyword 1:	Hemispherical Dished Head
Packing:	Wooden Case	OEM:	Avaiable
Brand:	MINGYI	Keyword 2:	ASME Hemispherical Head
Port:	Tianjin Port

Product Recommended

Eliptical head

Torispherical Head

Hemisphere Head

conical head

Flat Head

Products Description

Elliptical Head

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA
Thickness: 2mm-300mm
Material: stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly for pressure vessels and boilers in diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military.

Torispherical Head

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Thickness: 2mm--300mm
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS. AWWA
Material: stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly for pressure vesselsin diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military.

Hemisphere Head

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Thickness: 3mm-200mm
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA
Material:stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly for fire pits,pressure vessels in diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military

Conical Head

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Thickness: 4mm-300mm
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA
Material: stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly in brewery, food industry.Also available in oil, chemical, pharmaceutical, environmental and military
industry.

Flat Head

Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Thickness: 2mm-200mm
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA
Material:stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly for boilers in diverse industry such as oil, chemical, winery, pharmaceutical, environmental and military

Company Profile

Our Factory

Product Process

Product Packaging

1. Pallet packing
2. Wooden case packing
3. Steel pallet packing
4. Nude packing
5. According to customers' requirement

Certifications

Why Choose Us

Our Advantage:
1. We are a professional producer in various types of heads and bottoms with more than 20 years experience.
2. Provide professional design drawings.Help customers to design and analyze;
3. Provide free product samples and quality inspection reports;
4. Produce standard products according to customer requirements and inform customers before mass production;
5. Arrange the delivery and inform the customer 7 days in advance before the completion of the order;
6. Send detailed product pictures, size inspection report and material report to the customer before delivery;
7. Welcome customer inspection and third-party inspection, contact us for more information;

FAQ

1.What's your advantage? A: Honest business with competitive price and professional service on export process. 2.How can I believe you? A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. 4.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time. 5.How about the delivery time? A: Within 15-35 days after we confirm you requirement
