3 inch CF8 Stainless Steel Worm Gear Manual Flange Gate Valve with ANSI 150LB Rating

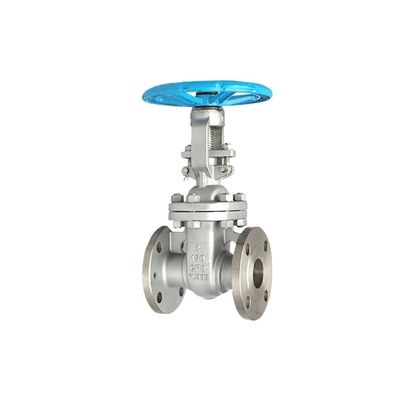

Large Image : 3 inch CF8 Stainless Steel Worm Gear Manual Flange Gate Valve with ANSI 150LB Rating

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	MY
Certification:	ISO 9001
Model Number:	MY-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$16.00/sets 1-99 sets
Packaging Details:	container case packaging

Contact Now

3 inch CF8 Stainless Steel Worm Gear Manual Flange Gate Valve with ANSI 150LB Rating

Description

Warranty:	1 Year	Type:	Gate Valves
Customized Support:	OEM, ODM, OBM, Software Reengineering	Application:	Control Water, Industry
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Power:	Manual
Media:	Water	Port Size:	CUSTOMIZED
Structure:	Angle	Material:	CI/DI/WCB/SS
Product Name:	Y Strainer	Keyword:	Y Type Strainer
Standard:	DIN F6	OEM:	Avaiable
MOQ:	1 Piece	Packing:	Carton
Brand:	Mingyi	Port:	Tianjin

Products Description

1. Stainless steel gate valve is known for its high strength
2. Stainless steel gate valves are also known for their corrosion resistance. A combination of corrosion resistance, high
strength, and high toughness makes stainless steel gate valves very useful in all high-pressure applications.
3. Stainless steel gate valves are also known for their corrosion resistance. A combination of corrosion resistance, high
strength, and high toughness makes stainless steel gate valves very useful in all high-pressure applications.
4.There are several types of valves that differ in their design: Wedge gate valve,Parallel gate valve,Knife gate valves,Gate valve
with rising stem,Gate valve with non rising stem

Characteristic of products

1. Integral encapsulation: The valve core adopts high-performance rubber and the latest vulcanization technology for overall encapsulation, tight and firm fit, accurate geometric dimensions, reliable sealing and long service life.
2. Light weight: The valve body is made of ductile iron. The weight is 25% lighter than the general gate valve, and the installation and maintenance are convenient; the maximum opening height of the valve is 67mm-280mm, which is lower than the general gate valve, and it can be installed in occasions with space restrictions.
3. Flat-bottomed seat: The bottom adopts the same flat-bottomed seat design as the pipeline, which will not accumulate debris, and
the flow path is unobstructed and reliable
4. Corrosion resistance: The inner cavity of the valve is coated by non-toxic epoxy resin powder, and the internal parts are made of copper alloy and stainless steel to prevent corrosion and rust.
5. The three 'O' seals: The stem seal is sealed with an O-ring, with low friction resistance, and the switch is light and water-proof.

Product Paramenters

Nominal pressure	Nominal diameter	Test pressure			Working Temperature	Medium
PN(Mpa)	DN(mm)	Shell	Seal	℃	/
1.0	40-600	1.5	1.1	≤80	Water、Source Water、 Sewage、Air、Oil
1.6			2.4			1.76
2.5			3.8			2.75

Main connection dimensions

Company Profile

Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of mechanical products. We has been manufactured and exported in valves, tank heads, flange, pipe and storage tank for more than 20 years, various types of products are made in　different materials grades like Carbon Steel, Stainless Steel, Duplex, Aluminum and so on. Our company is　located in Tianjin, we have no limitation in transporting our finished product (even large items) to Tianjin sea port from　where we can ship to our customers all over the world！

We have following qualifications:

1.One-stop Solution
From mold design, mold making, machining, fabrication, welding, surface treatment, assembly, packing to shipping
2.Quality Guarantee
We have a professional team to control the quality. Experienced engineers, precision machines, CMM and closed-loop QC system
3.Factory whole
Our products are sold directly from the factory and the price is cheap.
4.Customer Service
Every client is served by a specialized sales for timely technical support and after-sales service

Technological process

* Before production, we will send the drawing of the product according to your requirements.

* During the production process, we will regularly send you the production situation and pictures.
* We will test the equipment before shipment and send you the photo and video.

* Warranty is 1 year. We will provide non-vulnerable accessories free during the warranty.

We will provide on online video guidance if you have any questions. We will send engineers to your site for guidance if online video guidance can not solve the problem.

Package&transport

Exhibition

Certifications

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How can my order produced by my brand?
A:Yes, you can. Pls offer your brand or LOGO design to us(.AI or.PSD format), then we could produce all goods with your brand or LOGO.
