Optimize Control and Expansion with PN15 150LB Double Flange Butterfly Control Valve

Large Image : Optimize Control and Expansion with PN15 150LB Double Flange Butterfly Control Valve

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.00/sets 10-19 sets
Packaging Details:	Wooden case

Contact Now

Optimize Control and Expansion with PN15 150LB Double Flange Butterfly Control Valve

Description

Warranty:	3 Years	Type:	Butterfly Valves
Customized Support:	OEM, ODM, OBM	Application:	General
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Power:	Manual
Media:	Water	Port Size:	OEM
Structure:	BUTTERFLY	Color:	Customized
Size:	Customized	Weight:	Depends On Specifications
Material:	Customized	Name:	Butterfly Valve
Certificate:	Complete	Quality:	Excellent
After-sales Service:	Support	Standard:	Customized Service
Body Material:	Ductile Iron

Product Display

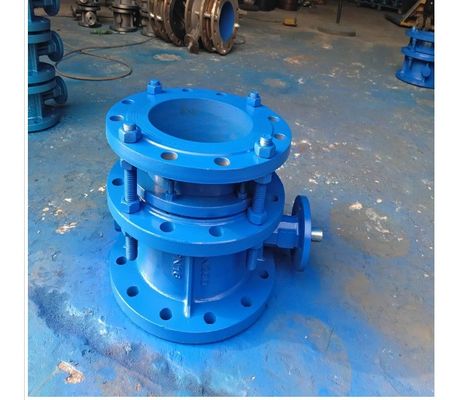

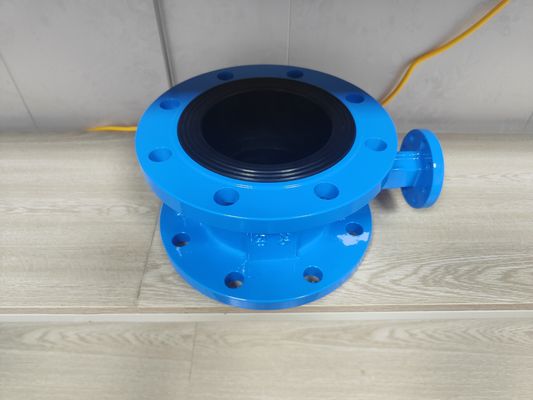

The flanged butterfly valve is a flanged butterfly valve and the pipe expansion valve have two functions as one, which can play a throttling role, solve the internal force caused by the temperature difference, and also play a telescopic role.

Product Features
1. The valve structure is simple, casting letters are clear, smooth surface.
2. Light torque easy to open, it can serve long time.

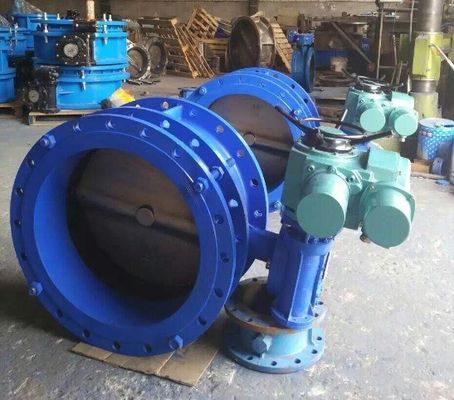

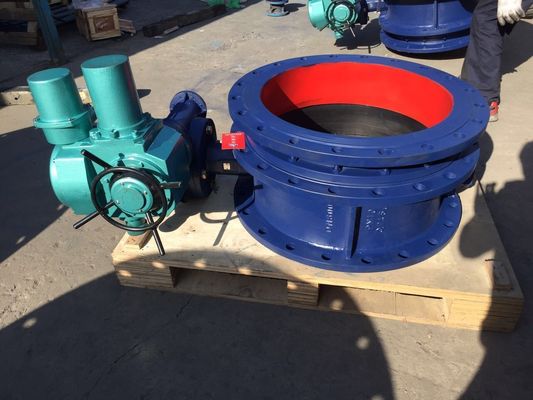

3. The top flange adopts ISO5211 (it is easy to equip with electric/Pneumatic/Hydraulic actuator).
4. All parts are machined accurately, quality is much better.
5. We adopt better quality rubber seat for long service life.
6. Replaceable seat, it is easy to mend the valve.

Top flange meets the standard of ISO5211 for handle,gearbox electric and pneumatic etc

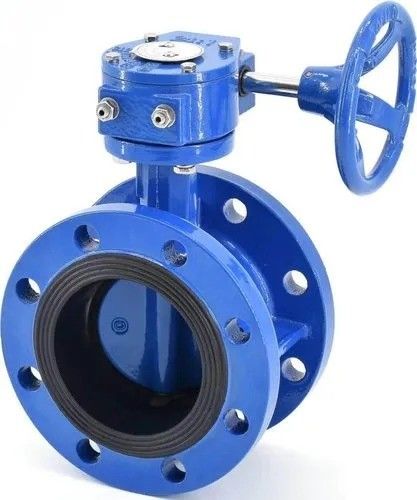

Handle:malleable iron handle strong metal handle,normal and aluminum handle etc for chose,functional well Worm gear:high quality and normal quality worm gear for chose ,the color of worm gear can also be customized and good looking.

Specification

Specification	Small structure length（mm）	Large structure length（mm）
DN200	245	290
DN250	253	316
DN300	282	350
DN400	314	393
DN500	328	414
DN600	385	483
DN700	418	498
DN800	453	535
DN1000	540	637
DN1200	610	735
DN1400	700	865

Production Process

Pressure Testing

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test, pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes

Company Profile

Mingyi is a leading producer that integrates the research, design and customized development, production and sales services of
mechanical products. We has been manufactured and exported in valves, tank heads, flange, pipe and storage tank for more than 20 years, various types of products are made in different materials grades like Carbon
Steel, Stainless Steel,Aluminum and so on. Our company is located in Tianjin, we have no limitation in transporting our finished
product to Tianjin sea port from where we can ship to our customers all over the world！

Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients tomaintain a sustainable business for the long-term.

Our Certificates

Package & Transport

Application

1. Power industry
2. Water works
3. Offshore industry
4. Wastewater treatment
5. Oil and gas production
6. Pipeline
7. Commercial buildings

FAQ

1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: What's your product range? A: We can produce Butterfly valve, Gate valve, Check valve, Y strainer, Rubber Joint
By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

3. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity, Generally 30-35 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Payment
A: T/T, L/C, OA, D/P, D/A.
9. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
10. Q: Do you provide free sample?
A: Free sample is OK for us.
