Efficiently-Controlled Butterfly Valves WCB Ductile Cast Iron Pneumatic Flanged Valve

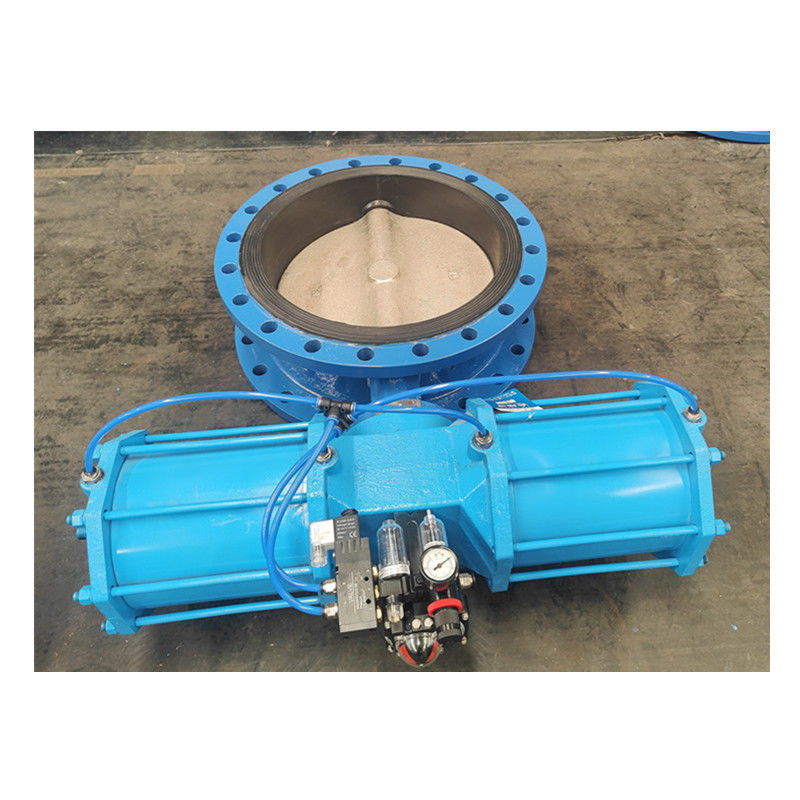

Large Image : Efficiently-Controlled Butterfly Valves WCB Ductile Cast Iron Pneumatic Flanged Valve

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$30.00/sets 10-19 sets
Packaging Details:	Wooden case

Contact Now

Efficiently-Controlled Butterfly Valves WCB Ductile Cast Iron Pneumatic Flanged Valve

Description

Application:	General	Port Size:	OEM
Warranty:	3 Years	Power:	Manual
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	BUTTERFLY
Media:	Water	Customized Support:	OEM, ODM, OBM
Color:	Customized	Size:	Customized
Weight:	Depends On Specifications	Material:	Customized
Name:	Butterfly Valve	Certificate:	Complete
Quality:	Excellent	After-sales Service:	Support
Standard:	Customized Service	Body Material:	Ductile Iron
Type:	Butterfly Valves

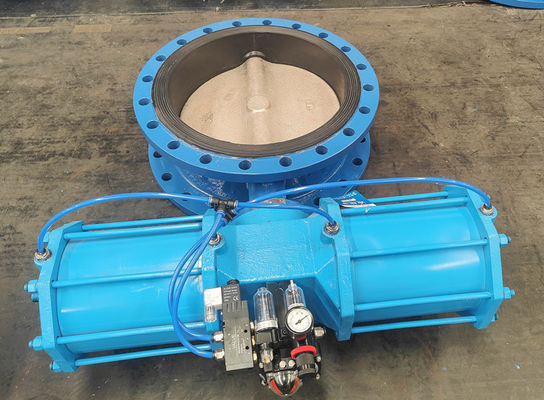

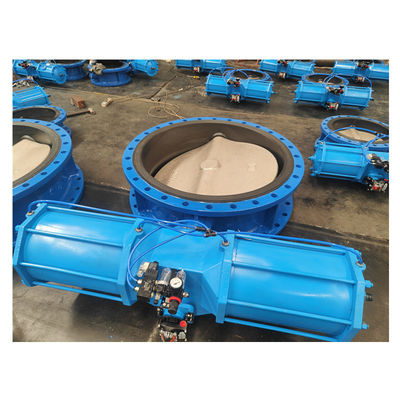

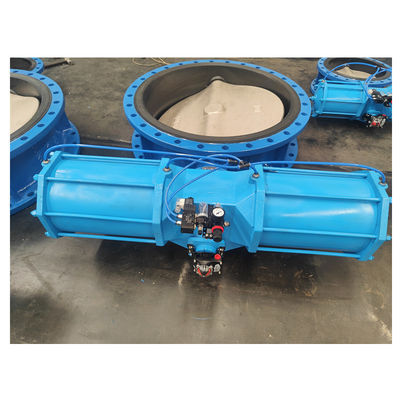

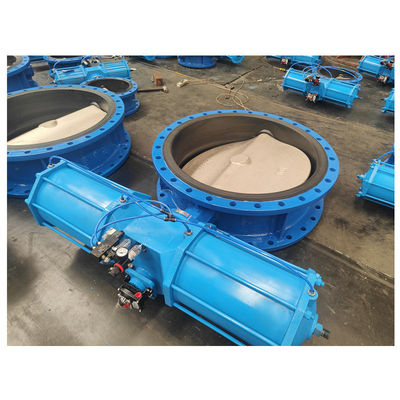

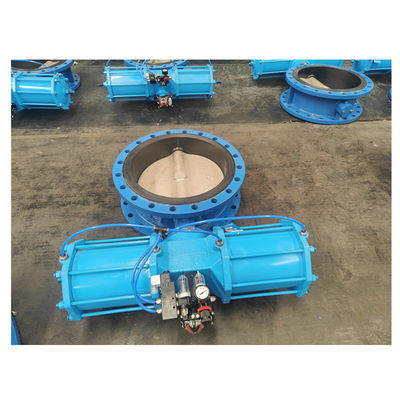

Product Display

The butterfly valve mainly consists of valve body, revolving axle, valve board. and valveseat. as well as driving
mechanism(handle, worm and gear, pneumatic device or electric device), etc, which achieves hoisting, as well as dominant discharge by rotation of axle and butterfly-board driven by driving mechanism.

The butterfly valve has the following characteristics:
1.Simple and compact structure, install and dismount.
2. 90 hoisting, it can be quickly opened and closed. Small operation torque, saving strength and easy.
3. Good sealing performance. long service life, which can achieve zero leakage.
4. The butterfly chooses difierent parts materials, to be suitable for kinds of mediums.
5. Its flow characteristic approximates to straight line, which also has good adjustment

Specification

Nominal Diameter (DN)			25(1")~600(24")	25(1")~600(24")	DN (inch)
Nominal Pressure (PN)			10	16	BAR
Test Pressure	Body	15	24
Test Pressure		Sealing	11	17.6
Working temperatureºC			-15ºC~+150ºC
Applicable Mediums			Fresh water, sewage, sea water, air, steam, food, drug, various oil, acid, alkali, salt, etc.

NO.	Part	Material
1	Body	Cast lron
			Ductile lron
			Carbon steel
			Stainless steel 304S
			Stainless steel 316S
			Cast aluminium
2	Disc	Coated nylon
			Coated nickle
			Stainless steel 304S
			Stainless steel 316S
			Duplex stainless steel
			Aluminum bronze
3	Seat	NBR
			EPDM
			Heat proof EPDM
			Neoprene
			Silicone rubber
			Fluororubber
			PTFE
5	Shaft	SS36/SS42/SS431/SMonel K500/ Duplex SS
6	0-ring	NBR/ EPDM/VITON

Company Profile

Mingyi is a leading producer that integrates the research, design and customized development, production and sales services of
mechanical products. We has been manufactured and exported in valves, tank heads, flange, pipe and storage tank for more than 20 years, various types of products are made in different materials grades like Carbon
Steel, Stainless Steel,Aluminum and so on. Our company is located in Tianjin, we have no limitation in transporting our finished
product to Tianjin sea port from where we can ship to our customers all over the world！

Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients to maintain a sustainable business for the long-term.

Our Certificates

Package & Transport

FAQ

1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: Do you have agent or representative abroad?
A: We do not have agent abroad, please contact us to purchase valves directly.

3. Q: What's your product range?
A: We can produce Butterfly valve, Gate valve, Check valve, Control valve, Y strainer, By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity, Generally about 30 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
9. Q: Do you provide free sample?
A: Free sample is OK for us.
10. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
