Ultra-light Aluminum Alloy Body Butterfly Valve Pneumatic Actuator for Smooth Control

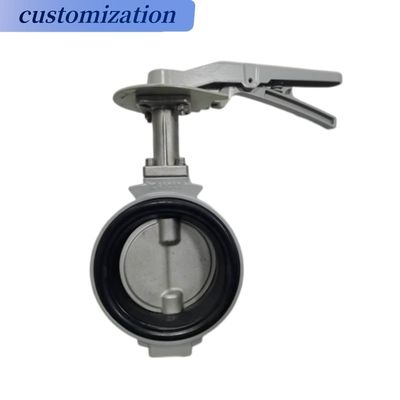

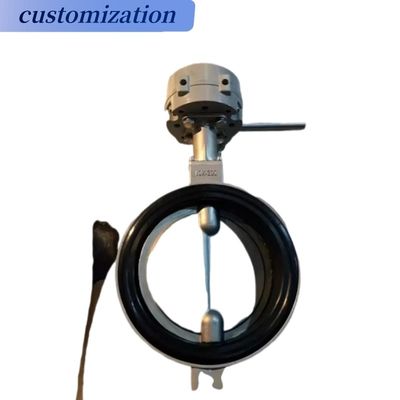

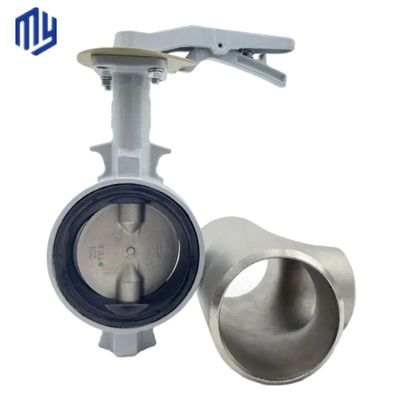

Large Image : Ultra-light Aluminum Alloy Body Butterfly Valve Pneumatic Actuator for Smooth Control

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	MINGYI
Model Number:	DN40, DN50, DN100, DN125, DN600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.00/sets 1-4 sets
Packaging Details:	wooden case
Supply Ability:	10 Set/Sets per Month

Contact Now

Ultra-light Aluminum Alloy Body Butterfly Valve Pneumatic Actuator for Smooth Control

Description

Application:	INDUSTRIAL	Port Size:	With Customer's Requirements
Warranty:	1 Years	Power:	Hydraulic
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	Diaphragm
Media:	Gas	Customized Support:	OEM, ODM, OBM
Type:	Butterfly Valves	Port:	Tianjin, China

Product Description

Adoptive Standards
1.Valve Design: API 609, MSS SP-67
2.Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
3.Pressure Test: API 598
4.Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
5.Top Flange: ISO5211
What is Feature of our butterfly Valve?
Features
1.vertical center line disc
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position
open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature.
It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Application
1.Water Treatment Plant 2.Breweries
3.Drilling Rigs 4. Heating & Air Conditioning
5.Paper Industry 6.Chemical Industry
7.Gas Plant 8.Pneumatic Conveyors
9.Sugar Industry 10.Waste Effluent Treatment Plant
11.Cooling Water Circulation 12.Compressed Air

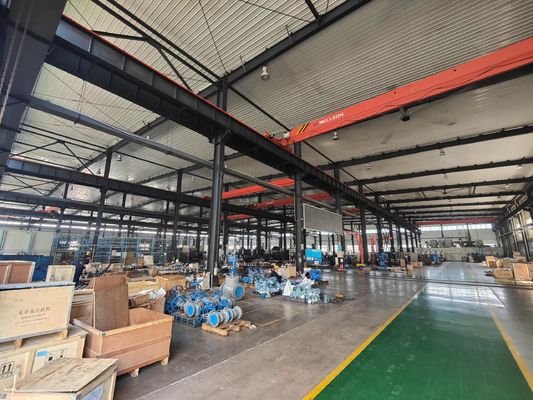

Production process

Company Profile

Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of mechanical products. We has been manufactured and exported in all-purpose valves for more than 20 years, various types of products are made in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. Our company is located in Tianjin, we have no limitation in transporting our finished product (even large items) to Tianjin sea port from where we can ship to our customers all over the world. Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients to maintain a sustainable business for the long-term. With good product quality, competitive price and business reputation, we are deeply supported and loved by clients. Honesty and trustworthiness are the foundation of the company, and excellence is our pursuit. We hope to cooperate with you with lofty ideals to create a bright future, welcome friends to come and guide!

CUSTOMER CASE PRESENTATION

Certifications

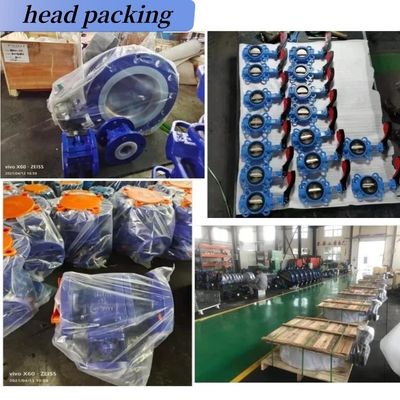

Packing & Delivery

FAQ

1. who are we?
We are based in Tianjin, China, start from 2021,sell to South Asia(75.00%),South America(8.00%),Eastern Europe(5.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gate valve，Butterfly valve，Air release valve，Ball valve，Check valve，etc.

4. why should you buy from us not from other suppliers?
More than 20 years experience in various of mechanical products. Support OEM, we can make the products as clients' requirement. Competitive price and high quality has been recognized by industry.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
