Durable Water Media Electric Motor Resilient Seated Gate Valve for Normal Temperature

Large Image : Durable Water Media Electric Motor Resilient Seated Gate Valve for Normal Temperature

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM
Model Number:	my

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$11.00/sets 10-99 sets
Packaging Details:	Wooden case

Contact Now

Durable Water Media Electric Motor Resilient Seated Gate Valve for Normal Temperature

Description

Application:	General	Port Size:	OEM
Warranty:	3 Years	Power:	Manual
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	Stop
Media:	Water	Customized Support:	OEM, ODM, OBM
Color:	Customized	Size:	Customized
Weight:	Depends On Specifications	Material:	Customized
Name:	Butterfly Valve	Certificate:	Complete
Quality:	Excellent	After-sales Service:	Support
Standard:	Customized Service	Body Material:	SS, CI, DI, WCB
Type:	Gate Valves

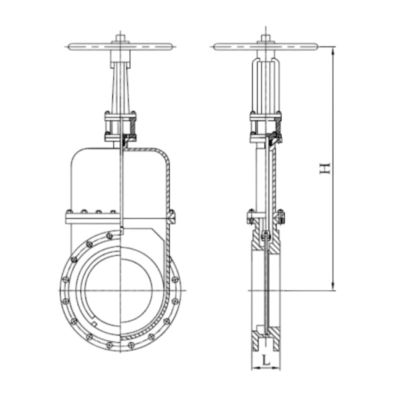

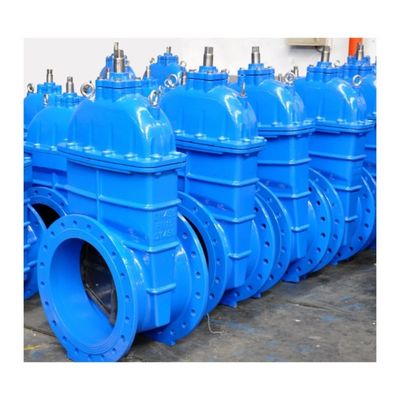

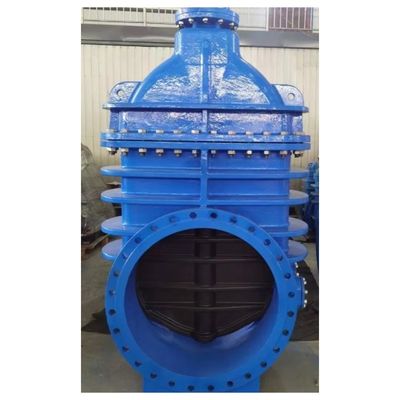

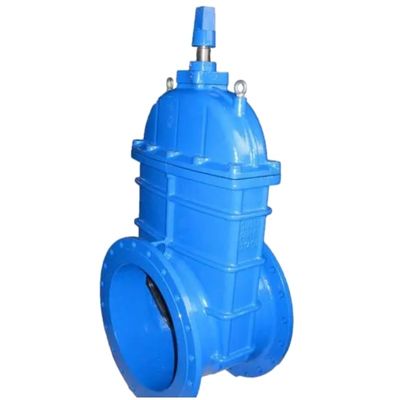

Product Display

Standard:
Design standard conform to: MSS SP-67, API609, EN593
Connection flange conform to: DIN PN10/16/25, ANSI B16.1, BS4504, ISO PN10/16,
JIS B2212/2213, BS 10 Table D, BS 10 Table E
Top flange conform to: ISO 5211
Face to face conform to: API609, ISO5752 series 20, BS5155
Test standard conform to: API598

Design characters:
1. Equipment used in cutting off medium in pipeline.
2. Suitable for hand wheel, gear operators or electric actuators.
Performance:
Nominal Diameter: DN40-DN1200
Nominal Pressure PN (MPa):
1.0, 1.6, 2.0, 2.5
Testing pressure (water) PS (MPa)
Body seat: 1.5 times rated pressure
Seat test: 1.1 times rated pressure

Specification

Product Name	Gate Valve
1. Material	A351 CF8M/CF8/CF3/CF3m, A216 WCB,A352 LCB,A217 WC6/WC9
2. Size	1 1/2''~36'' ( DN40~DN900)
3.Certificate	ISO9001 & CE
4. Port	Full Port
5. Working Pressure	150lb~1500lb
6. Connection Ends	Flange
7. Working Temp.	-196~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	Metal
10. Locking	Option
11. Inspection & Testing	According to API598

No.	Part Name	Material
1	Body	ASTM A216 WCB
2	Body Seat Ring	ASTM A105+HF
3	Disc	ASTM A216 WCB+13CR
4	Hinge	ASTM A216 WCB
5	Disc Washer	13CR
6	Disc Nut	SS304
7	Disc Nut Pin	13CR
8	Hinge Pin	13CR
9	Gasket	ASTM A308
10	Cover	ASTM A216 WCB
11	Stud	ASTM A193 B7
12	Stud Nut	ASTM A194 2H
13	Hinge Pin Cover	ASTM A105
14	Hinge Pin Cover Bolt	ASTM A193 B7
15	Name Plate	Aluminum

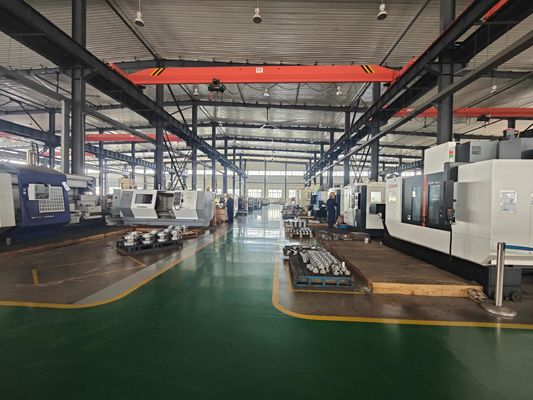

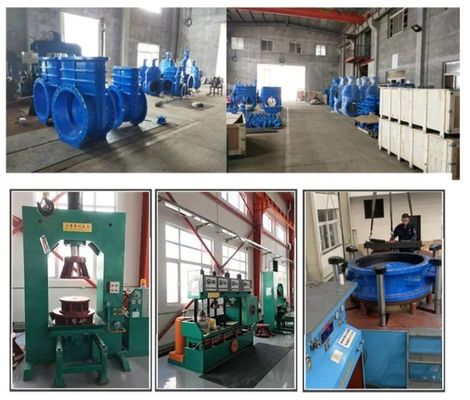

Production Process

Company Profile

Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of mechanical products. We has been manufactured and exported in all-purpose valves for more than 20 years, various types of products are made in different materials grades like Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. Our company is located in Tianjin, we have no limitation in transporting our finished product (even large items) to Tianjin sea port from where we can ship to our customers all over the world. Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients to maintain a sustainable business for the long-term. With good product quality, competitive price and business reputation, we are deeply supported and loved by clients. Honesty and trustworthiness are the foundation of the company, and excellence is our pursuit. We hope to cooperate with you with lofty ideals to create a bright future, welcome friends to come and guide!

Our Certificates

Package & Transport

We use wood packaging, which can be packed according to the customer's specific way to ensure that the package will not be damaged during transportation

FAQ

1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: Do you have agent or representative abroad?
A: We do not have agent abroad, please contact us to purchase valves directly.

3. Q: What's your product range?

A: We can produce Butterfly valve, Gate valve, Check valve, Control valve, Y strainer, By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity, Generally about 30 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
9. Q: Do you provide free sample?
A: Free sample is OK for us.
10. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
