Stainless Steel 304 316 Steel Dual Plate Check Valve with Customizable Port Size

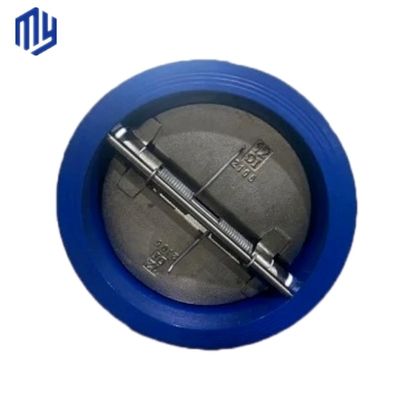

Large Image : Stainless Steel 304 316 Steel Dual Plate Check Valve with Customizable Port Size

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	MINGYI
Model Number:	DN40, DN50, DN100, DN125, DN600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.00/sets 1-4 sets
Packaging Details:	wooden case
Supply Ability:	10 Set/Sets per Month

Contact Now

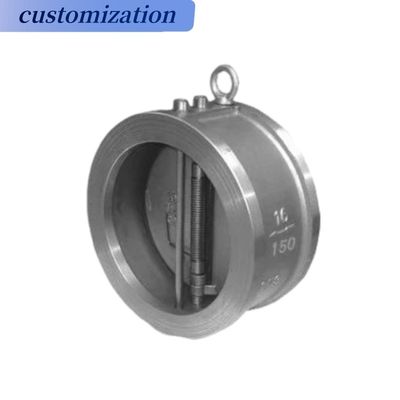

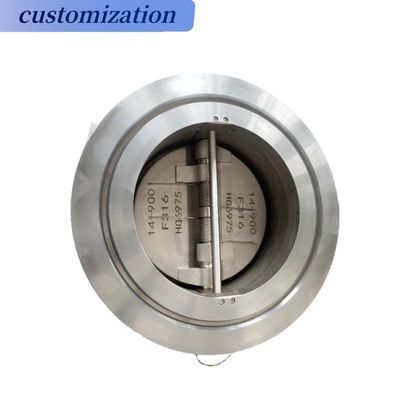

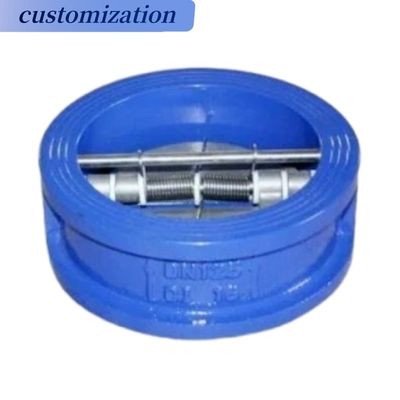

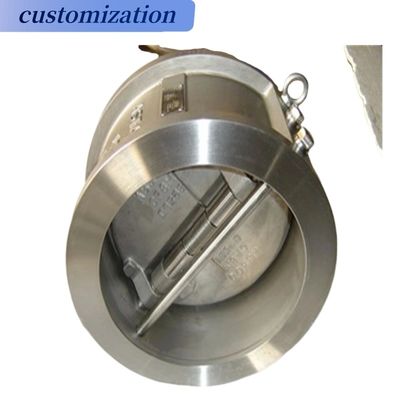

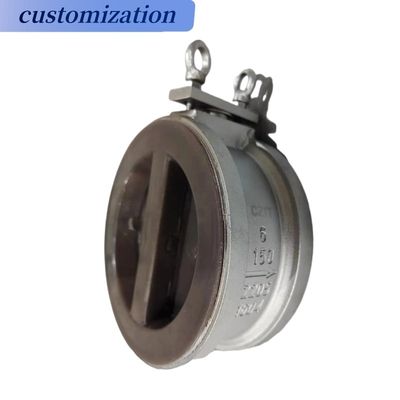

Stainless Steel 304 316 Steel Dual Plate Check Valve with Customizable Port Size

Description

Application:	INDUSTRIAL	Port Size:	With Customer's Requirements
Warranty:	1 Years	Power:	Hydraulic
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	Diaphragm
Media:	Gas	Customized Support:	OEM, ODM, OBM
Type:	Check Valve	Port:	Tianjin, China

Product Description

Dual plate check valve, for mounting directly between flanges according to DIN. Maintenance not required. For liquids and gases in the industrial range, general services, water treatment. Not suitable for media with solid components.
Highlight:
·Full Vulcanized liner enhance the life circle from, prevent body from corrosion
·Low weight and short laying length saves initial cost, requires less space, and is easier to install
·Independent springs provide quick-closing, non-slam shut off for reduced water hammer potential
·Lightweight, spring-loaded discs have low cracking pressure for energy efficient operation.
·Contoured body provides a short and straight flow path with minimal turbulence.
Specifications:
Body Materials: Cast Iron, Ductile Iron, Stainless Steel
Disk Materials: Ductile Iron, Stainless Steel
Stem Materials: Stainless Steel
Spring Materials: Stainless Steel
Seat Materials: BUNA-N(NBR& Nitrile), EPDM
Spacer Materials:PTFE
Applications: Potable Water, Wastewater, HVAC, Irrigation, Metallurgy, Power Generation, Marine, Oil & Gas, Mining
Material availability depends on valve size & series. Other materials are available. Please consult to us or your local AVANNTO representative for your specific condition.
Nominal diameter:
DN 40 - DN 1200
Face-to-face:
EN 558-1
ISO 5752
API 594
Flange accommodation:
EN 1092 PN 10/16
ASME B16.5 Class 150/ B16.47
Flange Surface Design:
EN 1092 Form A /B
ASME RF, FF
Tightness check:
EN 12266 (Leakage rate A)
ISO 5208, Category 3
Temperature range:
-10 °C to + 130°C (depending on pressure, medium and material)
Max. Operating pressure:
max. 16 bar

Specification

item	value
Warranty	1 years
Type	Check Valve
Customized support	OEM, ODM, OBM
Place of Origin	China
	Tianjin
Brand Name	MINGYI
Application	INDUSTRIAL
Temperature of Media	High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Power	Hydraulic
Media	Gas
Port Size	with customer's requirements
Structure	Diaphragm

Company Profile

VALVE DISC

Production Process

Advantage

Packing & Delivery

We use wooden cases to pack the goods, and can be customized according to customer's requirements, to ensure that the goods will not be damaged.
