Customized Flow Control Non Return Silent Check Valve for High Pressure Applications

Large Image : Customized Flow Control Non Return Silent Check Valve for High Pressure Applications

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM
Model Number:	my

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$11.00/sets 10-99 sets
Packaging Details:	Wooden case

Contact Now

Customized Flow Control Non Return Silent Check Valve for High Pressure Applications

Description

Application:	General	Port Size:	OEM
Warranty:	3 Years	Power:	Manual
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	Stop
Media:	Water	Customized Support:	OEM, ODM, OBM
Color:	Customized	Size:	Customized
Weight:	Depends On Specifications	Material:	Customized
Name:	Butterfly Valve	Certificate:	Complete
Quality:	Excellent	After-sales Service:	Support
Standard:	Customized Service	Body Material:	SS, CI, DI, WCB
Type:	Check Valve

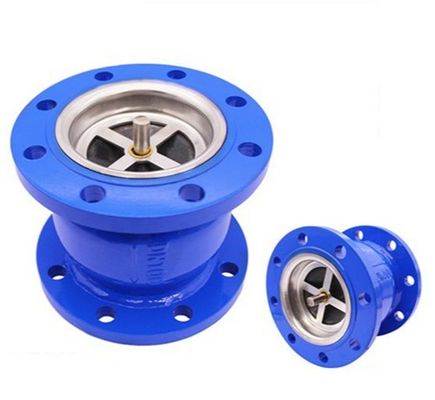

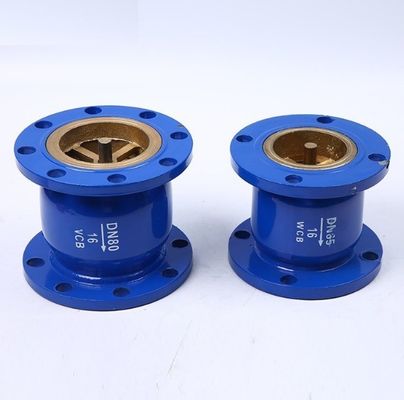

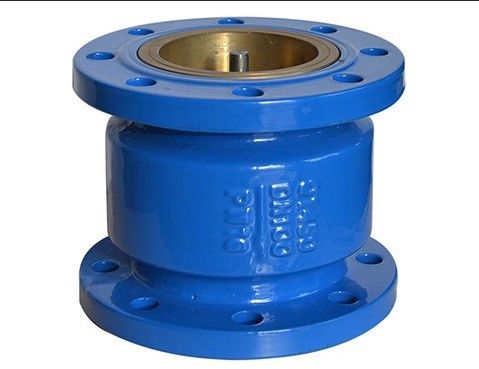

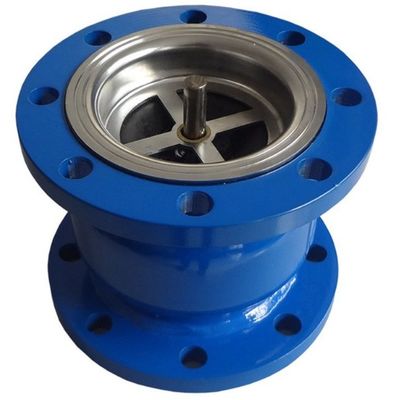

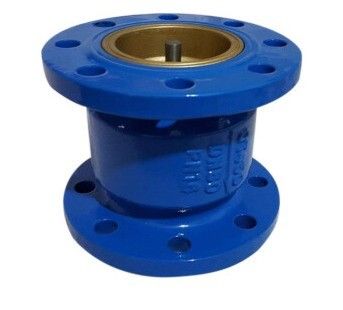

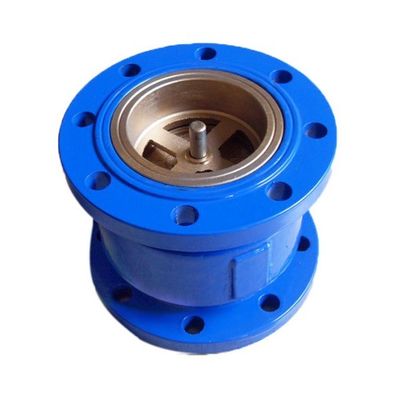

Product Display

This product is mainly suitable for high-rise building water supply, drainage system, fire pipe water supply
system, etc. This muffler check valve can effectively prevent the media from flowing back and produce destructive water hammer, and protect water pumps and other pipeline equipment.
Features are as follows:
1.It can be installed vertically and horizontally, the valve flap can be opened and closed flexibly, and the
operation is stable, the closing noise is low, it is safe, and there are few failures;
2.The valve clack is spring loaded, its quick closing can effectively insert the water hammer pressure, and
the sealing performance is good;
3.It has small size, light weight, low fluid resistance, fatigue resistance and long length.

Product Description
Silent check valves are suitable for installation in heating and conditioning plants , for water treatment and
distribution, pump stations, agricultural applications, industrial applications, firefighting applications, for compressed air,
oils and hydrocarbons.
Highlight:
·Full bore for low head losses
Specifications:
Body Materials: Ductile Iron
Stem Materials: Stainless Steel
O-ring Materials: NBR/EPDM
Disk Materials: Ductile Iron/EPDM
Spring Materials: Stainless Steel
Bushing Materials: Brass
Installing: In a vertical and horizontal position
Applications: Water treatment, Wastewater, HVAC, Irrigation .NOT for Gas and Steam
Material availability depends on valve size & series. Other materials are available. Please consult to us or your local AVANNTO
representative for your specific condition.
Nominal diameter:
DN 50 - DN 300
Flange accommodation:
EN 1092 PN 16
Flange Surface Design:
EN 1092 Form A /B
Temperature range:
-10 °C to + 100°C (depending on pressure, medium and material)
Max. Operating pressure:
max. 16 bar

Specification

Product Name	Silent Check Valve
1. Material	A351 CF8M/CF8/CF3/CF3m, A216 WCB,A352 LCB,A217 WC6/WC9
2. Size	1 1/2''~36'' ( DN40~DN900)
3.Certificate	ISO9001 & CE
4. Port	Full Port
5. Working Pressure	150lb~1500lb
6. Connection Ends	Flange
7. Working Temp.	-196~450ºC
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Seal	Metal
10. Locking	Option
11. Inspection & Testing	According to API598

No.	Part Name	Material
1	Body	ASTM A216 WCB
2	Body Seat Ring	ASTM A105+HF
3	Disc	ASTM A216 WCB+13CR
4	Hinge	ASTM A216 WCB
5	Disc Washer	13CR
6	Disc Nut	SS304
7	Disc Nut Pin	13CR
8	Hinge Pin	13CR
9	Gasket	ASTM A308
10	Cover	ASTM A216 WCB
11	Stud	ASTM A193 B7
12	Stud Nut	ASTM A194 2H
13	Hinge Pin Cover	ASTM A105
14	Hinge Pin Cover Bolt	ASTM A193 B7
15	Name Plate	Aluminum

Company Profile

Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of mechanical products. We has been manufactured and exported in valves, tank heads, flange, pipe and storage tank for more than 20 years, various types of products are made in different materials grades like Carbon
Steel, Stainless Steel,Aluminum and so on. Our company is located in Tianjin, we have no limitation in transporting our finished product to Tianjin sea port from where we can ship to our customers all over the world！

Package & Transport

Our Certificates

FAQ

1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: Do you have agent or representative abroad?
A: We do not have agent abroad, please contact us to purchase valves directly.

3. Q: What's your product range?

A: We can produce Butterfly valve, Gate valve, Check valve, Control valve, Y strainer, By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity, Generally about 30 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
9. Q: Do you provide free sample?
A: Free sample is OK for us.
10. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
