Butterfly Structure Mechanical Ball Valve Drain Valve with Excellent and Structure

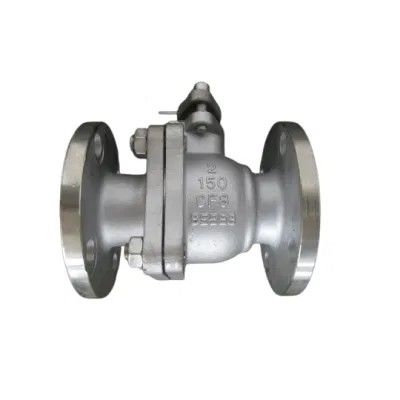

Large Image : Butterfly Structure Mechanical Ball Valve Drain Valve with Excellent and Structure

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.00/sets 10-19 sets
Packaging Details:	Wooden case

Contact Now

Butterfly Structure Mechanical Ball Valve Drain Valve with Excellent and Structure

Description

Application:	General	Port Size:	OEM
Warranty:	1 Years	Power:	Manual
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	BUTTERFLY
Media:	Water	Customized Support:	OEM, ODM, OBM
Color:	Customized	Size:	Customized
Weight:	Depends On Specifications	Material:	Customized
Name:	Butterfly Valve	Certificate:	Complete
Quality:	Excellent	After-sales Service:	Support
Standard:	Customized Service	Body Material:	Ductile Iron
Type:	BALL VALVES

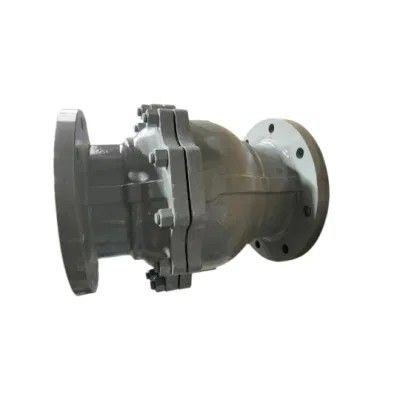

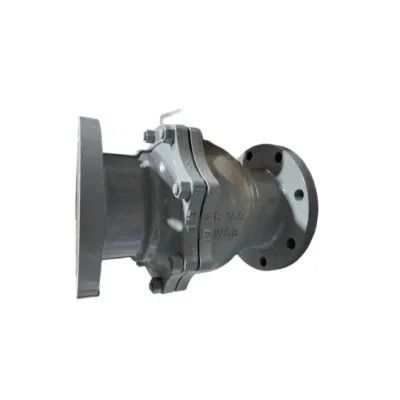

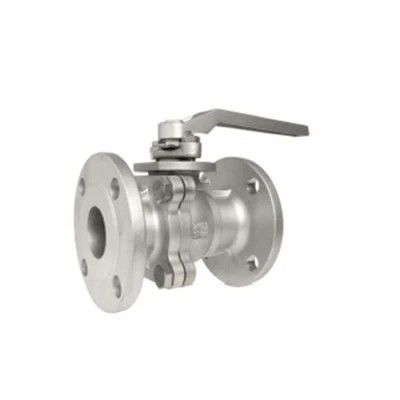

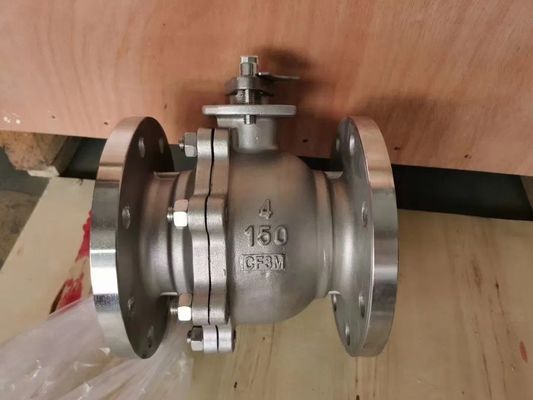

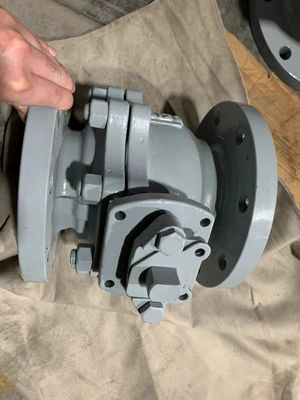

Product Display

Details

1. Size: 1/2''-10''(DN15~DN250)Floating Ball,2''-36''(DN50~DN900)
2. Pressure Rating: 150LB-2500LB/PN16~PN425/10K~60K)
3. Material: A351 CF8M/CF8/CF3/CF3M, A216 WCB, A352 LCB/LCC,WC6,WC9,A105,LF2,F304,F316,F316L,F11,F22, F51,F53,F55
4. Suitable Temperature: -27ºC~150~300ºC( Different temperature choose different materials).
5. Suitable Medium: Water, Steam, Oil and natural gas etc.

Technical Specification
1. Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071
2. Pressure & Temperature standard: ASME B16.34/DIN3230
3. Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002
4. Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220
5. Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.

Feature
1. Floating ball and Trunnion Ball, full bore or reduce bore.
2. ISO5211 mounting pad for option.
3. Blow-out proof stem design.
4. PTFE/RPTFE seat seal( Seat seal material could be decided by customer's request or according to valve's medium & temp.condition).
5. Anti-static design and API 607 Fire Safe Design available
6. Operation: Hand wheel, Worm wheel, Pneumatic actuator & Electric Actuator.

Top flange meets the standard of ISO5211 for handle,gearbox electric and pneumatic etcHandle:malleable iron handle strong metal handle,normal and aluminum handle etc for chose,functional well Worm gear:high quality and normal quality worm gear for chose ,the color of worm gear can also be customized and good looking.

Specification

Production Process

Pressure Testing

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test, pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes

Company Profile

PMingyi Intelligent Equipment ( Tianjin) Co.,Ltd. is a leading producer that integrates the research, designand customized development, production and sales services of mechanical products. We provide OEM/ODM one-stop service for

clients,specialized invarious tank heads and ends, including elliptical heads, torispherical heads, hemispherical heads, flat heads, conical heads, dish heads, etc. Various types of tank heads are made in different materials grades like Carbon Steel, Stainless Steel, Aluminum, etc.

Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients tomaintain a sustainable business for the long-term.

Our Certificates

Package & Transport

Application

1. Power industry
2. Water works
3. Offshore industry
4. Wastewater treatment
5. Oil and gas production
6. Pipeline
7. Commercial buildings

FAQ

1. Q: Are you a manufacturer or trading company? A: We are valve manufacturer and factory, and not trading company. 2. Q: Do you have agent or representative abroad? A: We do not have agent abroad, please contact us to purchase valves 3. QWhat's your product range? A: We can produce Butterfly valve, Gate valve, Check valve, Y strainer, Rubber Joint By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard. 4. Q: Is there any stock in your factory? And how about your lead time? A: We stock valves with normal sizes. The lead time depends on your quantity, Generally 30-35 days. 5. Q: Which countries do you export to? A: We export directly to vast majority of countries in the world. 6. Q: What certificates will you provide? A: We can provide CE/ ISO / WRAS. 7. Q: After-sales service A: 18 months year warranty for all kinds of products. As an experienced manufacturer, you can rest assured of the quality and sales service. 8. Q: Payment A: T/T, L/C, OA, D/P, D/A. 9. Q: Transportation A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea. 10. Q: Do you provide free sample? A: Free sample is OK for us. 11. Q: Do you accept custom design on size? A: Yes, if the size is reasonable.
