Medium Temperature Multifunction Water Pump Control Valve Flange Type DN50-DN600 PN16

Large Image : Medium Temperature Multifunction Water Pump Control Valve Flange Type DN50-DN600 PN16

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.00/sets 10-19 sets
Packaging Details:	Wooden case

Contact Now

Medium Temperature Multifunction Water Pump Control Valve Flange Type DN50-DN600 PN16

Description

Warranty:	3 Years	Type:	Safety Relief Valves, Vacuum Relief Valves, Pressure Reducing Control Valves
Customized Support:	OEM, ODM, OBM	Application:	General
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Power:	Manual
Media:	Water	Port Size:	OEM
Structure:	BUTTERFLY	Color:	Customized
Size:	Customized	Weight:	Depends On Specifications
Material:	Customized	Name:	Butterfly Valve
Certificate:	Complete	Quality:	Excellent
After-sales Service:	Support	Standard:	Customized Service
Body Material:	Ductile Iron

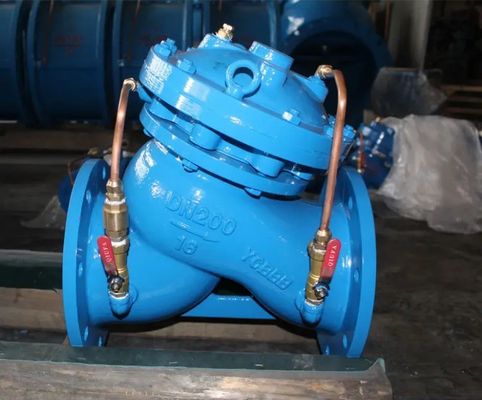

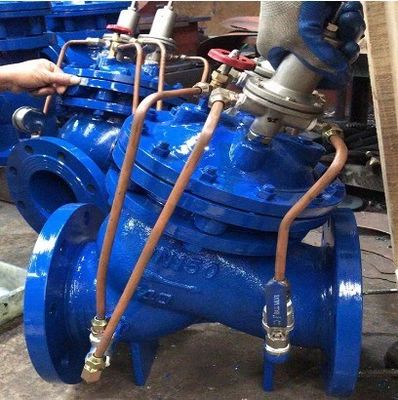

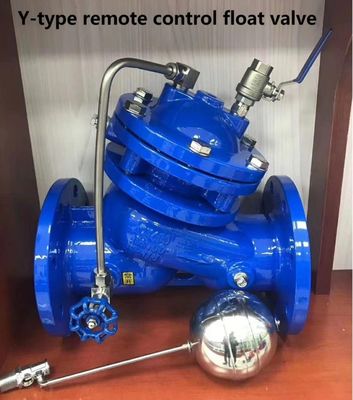

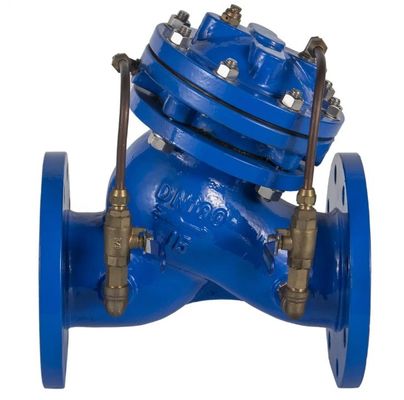

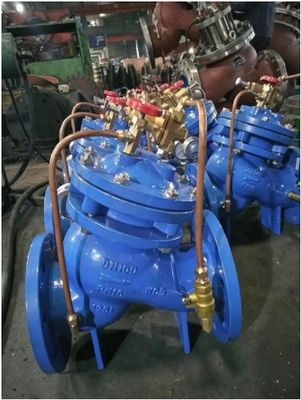

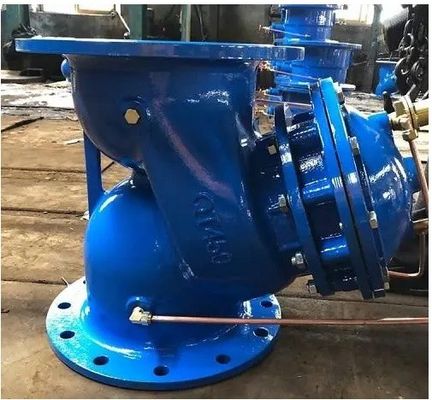

Product Display

Purpose
This valve is used mainly for water supply and drainage system and can be set on the pump outlet to prevent the pump from getting
harmed the medium back flow. it can also be set on the mouth of a water outlet pipe to prevent the medium from backflow.
Features
Simple structure, reliable performance, long durable, open-close times can be up to over million ones, suitable for sewage.

Executive Standard
GB/T 9113.1
API 609 Category A
BS EN593/BS5155
Performance parameters
Nominal diameter:2"-24"/DN50-DN600
Working pressure:10Bar/16Bar/25Bar
Face-to-face: API 609 Table 1/ISO 5752 Series 20/BS 5155
Flange accommodation: ANSI B16.1 Class125/150
EN1092-2 PN6/10/16/25
Top Flange:ISO5211
Tightness Inspection: API 598/ISO 5208,/EN12226-2
Main part material
Body: Ductile Iron ,Cast steel, Stainless Steel
Disc: Ductile Iron ,Cast steel, Stainless Steel
Stem: Stainless Steel
Sealing ring: Stainless Steel/PTFE
Packing: Flexible Graphite/PTFE

Specification

Production Process

Pressure Testing

Each valve shall be subject to pressure test before delivery. Unqualified valves shall not be sold.16 kg shell pressure test, pressure test pressure 24 kg; Maintain the pressure for 2 minutes; Sealing pressure test: test pressure 17.6 kg; Hold the pressure for 2 minutes

Company Profile

PMingyi Intelligent Equipment ( Tianjin) Co.,Ltd. is a leading producer that integrates the research, designand customized development, production and sales services of mechanical products. We provide OEM/ODM one-stop service for

clients,specialized invarious tank heads and ends, including elliptical heads, torispherical heads, hemispherical heads, flat heads, conical heads, dish heads, etc. Various types of tank heads are made in different materials grades like Carbon Steel, Stainless Steel, Aluminum, etc.

Our team has good knowledge and expertise in forming all type of materials into different shapes, our hard working and flexible craftsmanship is ready non-stop to execute the orders within the shortest possible lead time and to maintain our commitments with our clients. We always provide the most economical and efficient solutions for clients tomaintain a sustainable business for the long-term.

Our Certificates

Package & Transport

Application

1. Power industry
2. Water works
3. Offshore industry
4. Wastewater treatment
5. Oil and gas production
6. Pipeline
7. Commercial buildings

FAQ

1. Q: Are you a manufacturer or trading company?
A: We are valve manufacturer and factory, and not trading company.
2. Q: Do you have agent or representative abroad?
A: We do not have agent abroad, please contact us to purchase valves
From TIANJIN TANGFA WATTS VALVE Co., Ltd...
Directly. 3. Q
: What's your product range? A: We can produce Butterfly valve, Gate valve, Check valve, Y strainer, Rubber Joint
By ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
4. Q: Is there any stock in your factory? And how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,
Generally 30-35 days.
5. Q: Which countries do you export to?
A: We export directly to vast majority of countries in the world.
6. Q: What certificates will you provide?
A: We can provide CE/ ISO / WRAS.
7. Q: After-sales service
A: 18 months year warranty for all kinds of products.
As an experienced manufacturer, you can rest assured of the quality and sales service.
8. Q: Payment
A: T/T, L/C, OA, D/P, D/A.
9. Q: Transportation
A: Transported by DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
10. Q: Do you provide free sample?
A: Free sample is OK for us.
11. Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.
