Y Type Large Diameter Valve Ductile Iron Soft Sealing Flange Gate Valve Z41X-16Q DN300

Name: Y Type Large Diameter Valve Ductile Iron Soft Sealing Flange Gate Valve Z41X-16Q DN300
Brand: Mingyi Machinery (Tianjin) Co., Ltd
SKU: MY-01
Price: Negotiable USD
Availability: InStock

All Products

Dished Tank Heads
(604)

Elliptical Dished Head
(66)

Industrial Pipe Valve
(735)

Industrial Storage Tank
(89)

Industrial Gelatin Equipment
(21)

Water Manhole Cover
(5)

Certification

I'm Online Chat Now

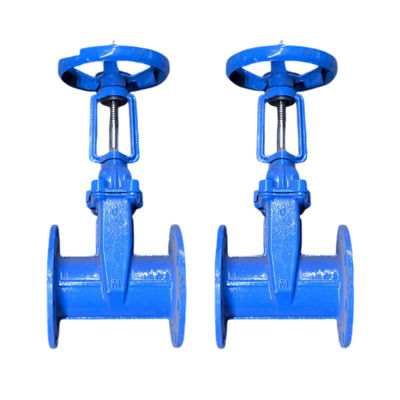

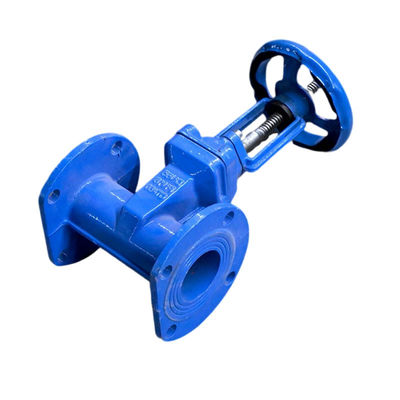

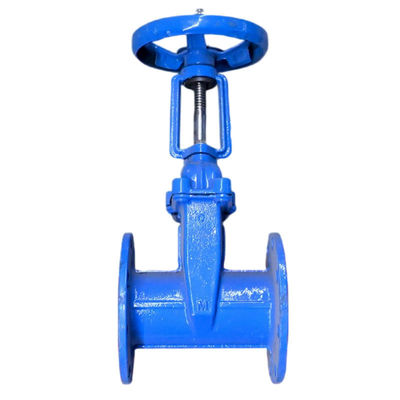

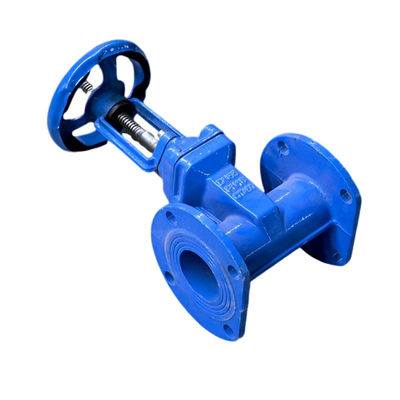

Y Type Large Diameter Valve Ductile Iron Soft Sealing Flange Gate Valve Z41X-16Q DN300

Large Image : Y Type Large Diameter Valve Ductile Iron Soft Sealing Flange Gate Valve Z41X-16Q DN300

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	MY
Certification:	ISO 9001
Model Number:	MY-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$9.00/sets 1-99 sets
Packaging Details:	container case packaging

Contact Now

Y Type Large Diameter Valve Ductile Iron Soft Sealing Flange Gate Valve Z41X-16Q DN300

Description

Application:	Control Water, Industry	Port Size:	CUSTOMIZED
Warranty:	1 Year	Power:	Manual
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	Y Type
Media:	Water	Customized Support:	OEM, ODM, OBM, Software Reengineering
Material:	CI/DI/WCB/SS	Product Name:	Gate Valve
Keyword:	Gate Valve	Standard:	GB DIN ANSI GOST
OEM:	Avaiable	MOQ:	1 Piece
Packing:	Carton	Brand:	Mingyi

Products Description

Resilient Seat Gate Valve

Resilient seat gate valves are gate valves with an elastomer lined wedge. They are especially used for waste water, drinking
water supply and irrigation.
Gate Valve Specifications:
Size: DN40-DN1200
Pressure: PN10/PN16
Standard: EN593, DIN 2501 PN6/10/16, DIN3202 F4
Materials:
Body :Ductile Iron
Seal : Ductile Iron+EPDM(Soft Seated)
Stem : Stainless Steel 304
Resilient Seat Gate Valve Characteristic:
Medium: Water, Waste Water, Air, Oil
Temperature: -20 to 120ºC

Product Paramenters

Nominal pressure	Nominal diameter	Test pressure			Working Temperature	Medium
PN(Mpa)	DN(mm)	Shell	Seal	℃	/
1.0	40-600	1.5	1.1	≤80	Water、Source Water、 Sewage、Air、Oil
1.6			2.4			1.76
2.5			3.8			2.75

Main connection dimensions

Company Profile

Mingyi Intelligent Equipment ( Tianjin) Co., Ltd. is a leading producer that integrates the research, design and customized development, production and sales services of mechanical products. We has been manufactured and exported in valves, tank heads, flange, pipe and storage tank for more than 20 years, various types of products are made in　different materials grades like Carbon Steel, Stainless Steel, Duplex, Aluminum and so on. Our company is　located in Tianjin, we have no limitation in transporting our finished product (even large items) to Tianjin sea port from　where we can ship to our customers all over the world！

We have following qualifications:

1.One-stop Solution
From mold design, mold making, machining, fabrication, welding, surface treatment, assembly, packing to shipping
2.Quality Guarantee
We have a professional team to control the quality. Experienced engineers, precision machines, CMM and closed-loop QC system
3.Factory whole
Our products are sold directly from the factory and the price is cheap.
4.Customer Service
Every client is served by a specialized sales for timely technical support and after-sales service

Technological process

* Before production, we will send the drawing of the product according to your requirements.

* During the production process, we will regularly send you the production situation and pictures.
* We will test the equipment before shipment and send you the photo and video.

* Warranty is 1 year. We will provide non-vulnerable accessories free during the warranty.

We will provide on online video guidance if you have any questions. We will send engineers to your site for guidance if online video guidance can not solve the problem.

Package&transport

Exhibition

Certifications

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?

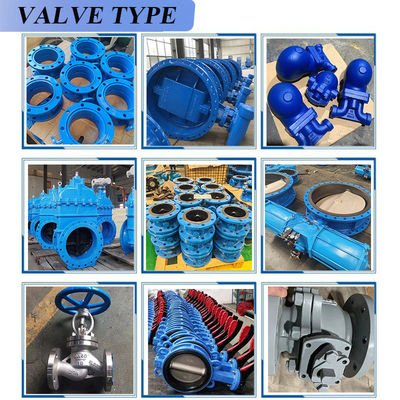

A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How can my order produced by my brand?
A:Yes, you can. Pls offer your brand or LOGO design to us(.AI or.PSD format), then we could produce all goods with your brand or LOGO.
