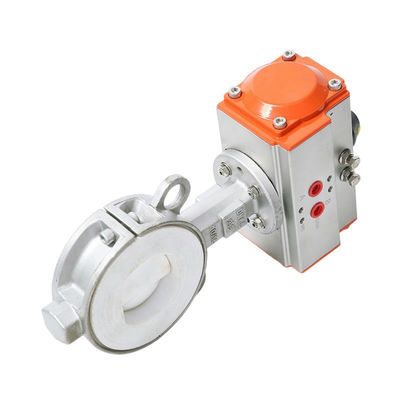

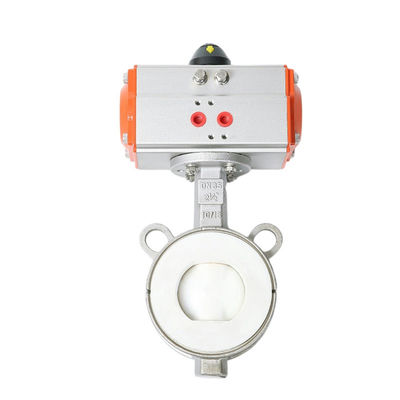

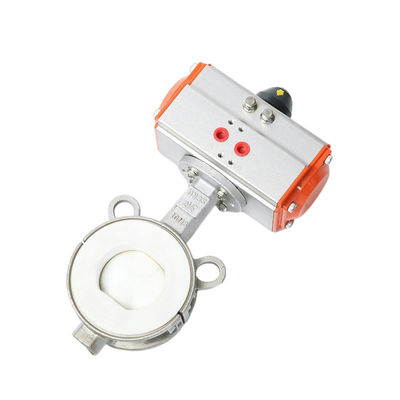

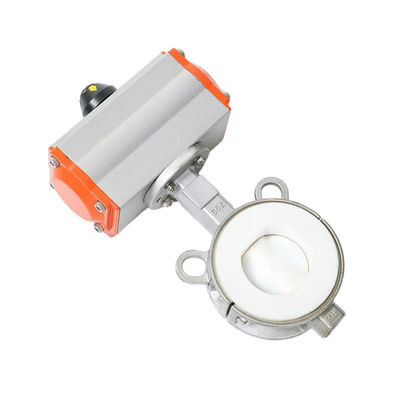

PTFE Actuator Stainless Steel 304 Soft Sealed Butterfly Valve for Customized Port Size

Large Image : PTFE Actuator Stainless Steel 304 Soft Sealed Butterfly Valve for Customized Port Size

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	OEM
Model Number:	MY-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$10.00/sets 10-19 sets
Packaging Details:	Wooden case

Contact Now

PTFE Actuator Stainless Steel 304 Soft Sealed Butterfly Valve for Customized Port Size

Description

Application:	General, Industrial Usage, Water Industrial Usage, Household Usage	Port Size:	OEM
Warranty:	1years	Power:	Manual
Temperature Of Media:	High Temperature, Low Temperature, Medium Temperature, Normal Temperature	Structure:	BUTTERFLY
Media:	Water	Customized Support:	OEM, ODM, OBM
Standard:	Customized Service	Body Material:	Ductile Iron
Production Capacity:	1000PCS/Per Day	Material Of Seal Surface:	Material Of Seal Surface
Transport Package:	Wooden Case	Color:	Customization
Seal Material:	EPDM+PTFE	Product Name:	Wafer Butterfly Valve
Shape:	Customization

Product Display

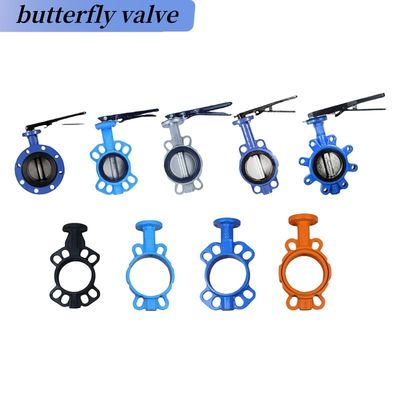

Cast Iron Manual Wafer Butterfly Valve

Actuator Mounting Flange OR Handle

The top flange is drilled according to EN ISO 5211 to accommodate direct mounting of various actuators. Handles of different materials and colors can be customized according to your needs.

Valve Disc

Precision machined and hand polished discs provide minimal torque and longer seat life. It can be customized according to the requirements you provide.

Product features 1. The valve structure is simple, the casting letters are clear, and the surface is smooth. 2. The torque is easy to open and can be used for a long time. 3. The top flange adopts ISO5211 (easy to equip electric/pneumatic/hydraulic actuator). 4. All parts are processed accurately and the quality is better. 5. We adopt better quality rubber valve seat for long service life. 6. Valve body, valve plate, actuator, valve seat can be customized as follows:

Specification

Nominal Diameter (DN)			25(1")~600(24")	25(1")~600(24")	DN (inch)
Nominal Pressure (PN)			10	16	_BAR
Test Pressure	Body	15	24
Test Pressure		Sealing	11	17.6
^{Working temperatureºC}			-15ºC~+150ºC
_{Applicable Mediums}			Fresh water, sewage, sea water, air, steam, food, drug, various oil, acid, alkali, salt, etc.

^No.	^Parts	Material
1	^Body	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Bronze, Aluminium Alloy.
²	^Seat	NBR, EPDM/ REPDM, PTFE/EPTFE, Viton, Neoprene, Hypalon, Sillicon, PFA.
³	Shaft	SS416, SS304, SS316, Monel
₄	Disc	Stainless Steel, Bronze, ( DI/WCB/SS) coated ( Epoxy painting/ Nylon/ EPDM/NBR/PTFE/PFA)
⁵	^Bushing	PTFE, Brone
⁶	^{O Ring}	NBR, EPDM, FKM
⁷	^Operation	Hand Lever, Gear Box, Electric/ Pneumatic/ Hydraulic Actuator

Production Process

Company Profile

Mingyi Intelligent Equipment ( Tianjin) Co., Ltd.

1. Engaged in mechanical product design, R & D and production for more than 20 years, with professional team and rich experience.

2. Main product include various of valves, tank heads, manholes, flanges, storage tanks and other OEM/ ODM customized products that client require.
3. Support customization, factory competitive price and no-worry after sales policy.

FAQ

1. Q: Are you a manufacturer or trading company? A: We are valve manufacturer and factory, not trading company. 2. Q: What is your valves range? A: We can produce butterfly valve, gate valve, check valve, Y-type filter, in line with ISO/ANSI/DIN/JIS/EN/GB standard. 3. Q: Does your factory have inventory? What is your delivery time? A: We stock normal size valves. The delivery time depends on your quantity, usually 15 days.
